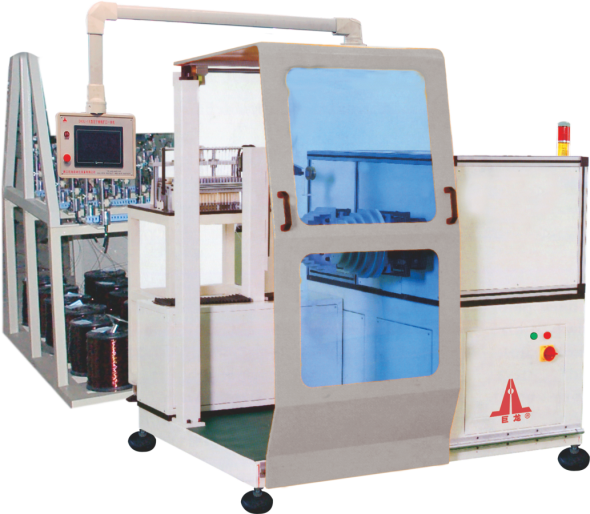

WRJ-1D型 定子線圈繞線機
WRJ-1D Stator winding machine
本機適用于大功率電機線圈的自動繞線。采用進口PLC程控，彩色觸摸屏控制，自動繞線、排線、自動跨槽，繞線模具可自動伸縮，繞線張力可調(diào)，操作簡單方便，工作效率高。
Suitable for high-power motor coil automatic winding. It adopts imported PLC programmable control, color touch screen control,automatic winding, automatic wire winding, automatic winding and winding die. The tension of winding is adjustable, the operation is simple and convenient and the work efficiency is high.
| 電源電壓Supply voltage | AC380V±10% 50Hz |
| 氣源壓力Air pressure | 0.5~0.7MPa |
| 總功率Total power |
8kw |
| 線徑范圍Wire Range | Φ0.3~Φ1.6mm |
| 回轉直徑Turning diameter | Φ350~650/Φ500-1200mm |
| 旋轉速度Rotating speed |
0~180r/min |
