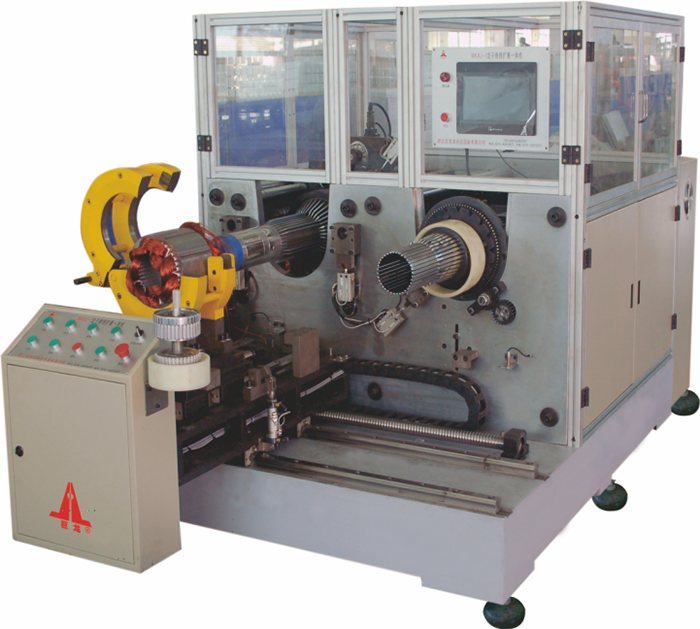

(雙層)MKXJ-1型 定子嵌線擴口一體機

上傳時間:2019-05-31



MKXJ-1 Stator Wire Embedding and Expanding Machine



本是專為電機定子繞組分相多次嵌線而設計的專用設備。適用于定子繞組多次分相嵌線和擴口,槽滿率較高定子,嵌好后線圈繞組排列整齊。線圈繞組不易傷線,本機采用嵌線針把絕緣紙和線圈一次性嵌入定子中,嵌線速度快效率高。本機有手動、單步、自動三種工作方式,便于操作者調試和自動操作。本機采用觸摸屏顯示器,美觀大方,操作方便。控制方式:三菱FX系列可編程控制器和40SS筒易運動控制器。本機有故障自檢功能,常見故障均能在顯示器上顯示。



Special equipment for  embedding coils into stator, it can be embedded multi-times. Suitable for multi-times embedding and expanding stator coils with high filling ratio. It comes out that winding coils arranged in neat rows. Windings damage is not easily occurred. It’s efficient by using special needle to embed insulation paper and coils in stator one time.The machine has three working methods, manual, single-step, automatic, so it is easy for debugging and automatic working. This machine applies touch screen , beautiful, easy operating.Control method: Mitsubishi FX series PLC and 40SS simple motion controller.This machine has the function of Built-in self-test, common errors can be displayed.


技術參數/Technicai Parameters

輸入電壓Supply voltage AC380V±10%  50Hz
電源容量Power capacity 5000VA
氣源壓力Air pressure 0.5~0.7Mpa
嵌線伺服電機 Wire embedded servomotor 1.5kW
紙庫分度伺服電機  Paper dividing servomotor 1.5kW
嵌頭分度伺服電機 Embedding dividing servomotor 1.5kW
夾緊伺服電機Clamping servomotor 750W

送紙伺服電機 Paper feed servomotor

750W
