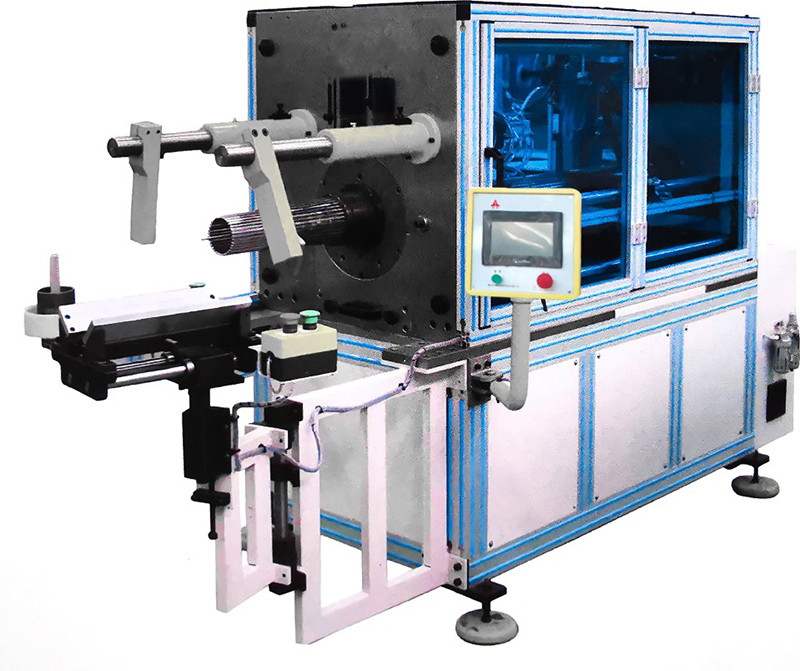

（臥式）DQ-1W型 定子嵌線機

DQ-1W Stator Coil Inserting Machine

本機適用于新能源電機定子繞組自動嵌入定子槽，并自動嵌入槽蓋紙的專用設備。采用三菱PLC程控，彩色觸摸屏操作及故障診斷功能，伺服電機驅動滾珠絲桿及推頭推入線圈入槽，行程控制準確，速度均勻，更換簡單方便，工裝堅固，使用壽命長，工作效率高。

Suitable for new energy  motor stator  automatically embedding coils to stator slot, and automatically covering the slot. Mitsubishi PLC control, color touch screen operation and fault diagnosis, servo motor drives ball screw and push bar to insert coils into the slot, stroke control accuracy, stable speed. The tooling replacement is simple and convenient, solid tooling, long life, high efficiency.

技術參數/Technicai Parameters
