您現在所在的位置:首頁--DK-2D型 中間整形機

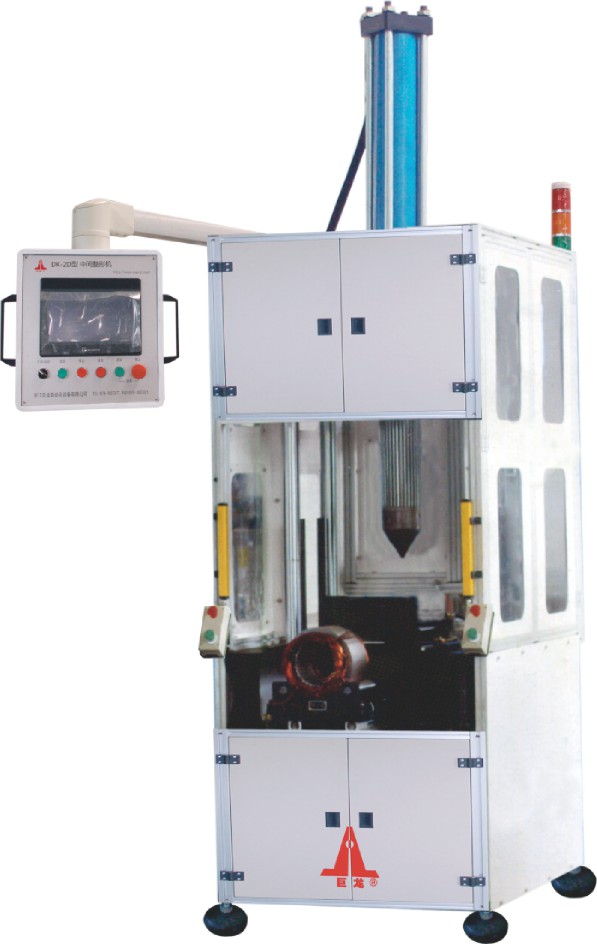

DK-2D型 中間整形機

上傳時間:2019-05-31



DK-2D Pre-forming Machine



本機適用于嵌線后電機線圈的端部整形。采用進口PLC程控,彩色觸摸屏控制,液壓系統作為主動力,臥式結構設計,工位自動進出,內漲、外包,端部自動整形,保壓時間可調。



This machine is suitable for pre-forming the end of the motor coil after coil inserting. Adopting imported PLC programmable control, color touch screen control, hydraulic system as the driving force, horizontal structure design, automatic in and out of the station, inner rising, outsourcing, end automatic shaping, compressing time adjustable.


技術參數/Technicai Parameters


電源電壓Supply voltage AC380V±10% 50Hz

總功率Total power

5kw

定子疊厚Core thickness 16~160mm/50~300mm
定子內徑Stator ID Φ30~120mm/Φ50~200mm
定子外徑Stator OD ≤Φ300 mm
