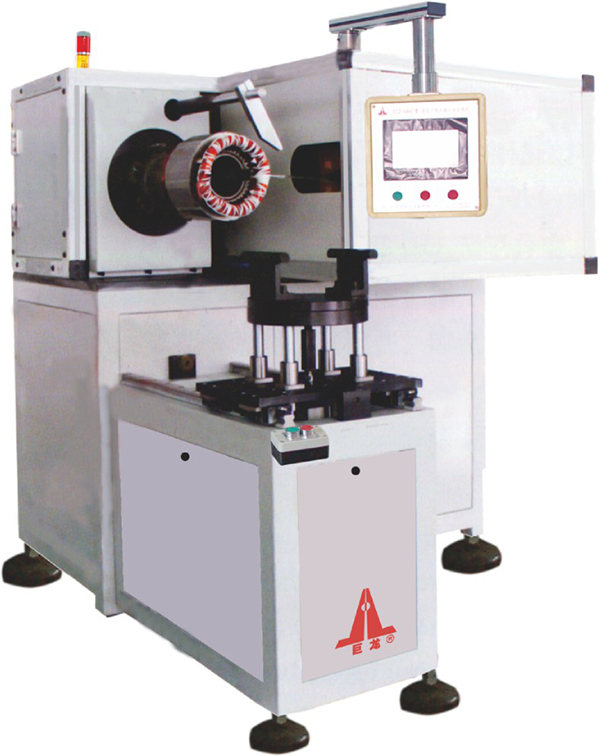

(臥式)BXJ-1W型 定子綁線機
BXJ-1W Stator Lacing Machine
本機適用于定子線圈的端部自動綁線。采用進口PLC程控,彩色觸摸屏控制,臥式結構設計,單針伺服電機完成角度鉤線,定子上料,可移動,可升降,綁扎自動分度,可實行逐槽、隔槽、跳槽綁扎,綁扎速度快,更換模具方便。
Suitable for automatic lacing the end of the stator coil.It adopts imported PLC programmable control, color touch screen control,horizontal structure design, single-needle servo motor to complete angle hook line, stator feeding, movable, lifting and lashing,automatic slotting, slotting, slotting, hopping Fast, easy to replace the mold.
技術參數/Technicai Parameters
電源電壓Supply voltage | AC220V±10% 50Hz |
氣源壓力Air pressure |
0.5~0.7MPa |
總功率Total power | 3kw |
定子疊厚Core thickness |
100~260mm/100~320mm |
定子內徑Stator ID |
Φ80~180/Φ80~260mm |
定子外徑Stator OD |
Φ160~280/Φ160~360mm |
