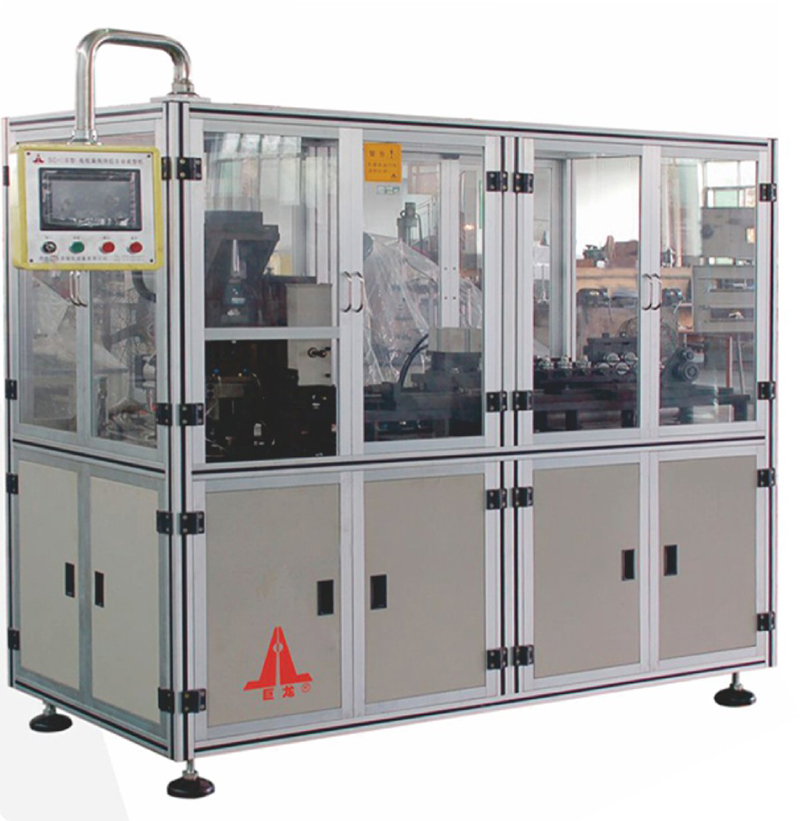

(裸線氣動強迫沖壓成形)SC-2B型 扁線自動成形機

上傳時間:2019-06-01




SC-2B Starter Armature Flat Wire Automatic Shaping Machine (Pressing type)



本機適用于汽車起動電機電樞扁裸線繞組的自動送線、自動校直、自動切斷、自動沖壓成形的一種專用設備。采用三菱PLC程控,觸摸屏或液晶顯示器設定參數,由獨立放線機,校直送線機構及下料成形機三部分組成,定長送線、機械聯動自動扭轉臂拉成形結構,四刀切斷,成形角度可調節。



Suitable for wire auto-feeding, automatic alignment, auto-cutting and auto-stamping forming of the bare armature winding of the motor starter motor.Mitsubishi PLC program, touch screen or LCD set parameters, by the independent pay-off machine, straightening machine and feed forming machine composed of three parts, fixed length to send lines, mechanical linkage automatically twisted arm pull forming structure, four knife cut off, forming angle adjustable


技術參數/Technicai Parameters


電源電壓Supply voltage

AC220V±10% 50Hz

氣源壓力Air pressure

0.5~0.7MPa

總功率Total power

2kw

生產效率Productivity

20~25根/min

送線長度Feeding length

180~400 mm

展開長度Coil length

≤400 mm

線徑范圍Wire Range

≤15mm2
