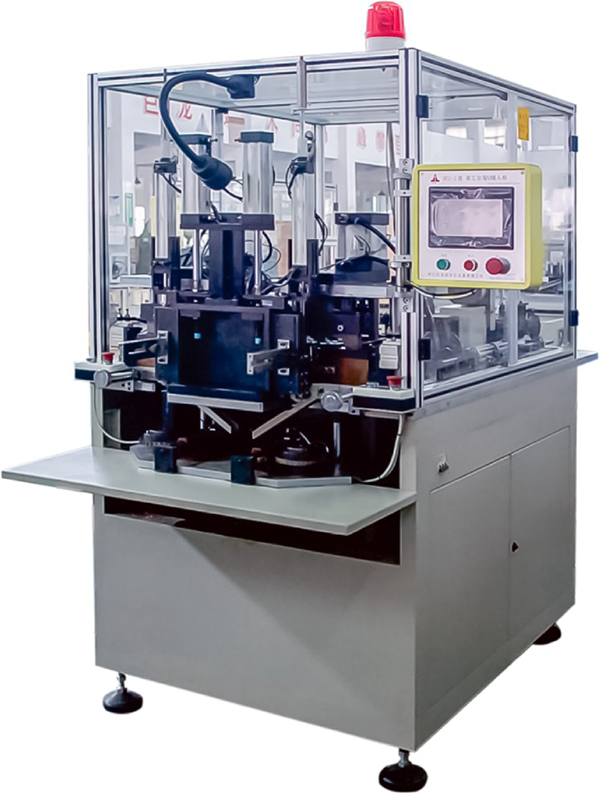

WU-2型 雙工位彎U插入機
WU-2 Double Station U shaped Automatic Inserting machine
本機是圓線彎U成型后插入到工裝模具中的專用設備。采用三菱PLC程控,彩色觸摸屏修改參數(shù),線頭自動剝線,釘字形切斷,氣缸定長送線,是汽車馬達電樞繞組漆包線定長切斷,自動成型專用設備。
This machine is a round-line bending U into the tooling after the mold in the special equipment.Mitsubishi PLC program-controlled,color touch screen to modify parameters, thread automatic stripping, nail-shaped cut off, the cylinder fixed-length delivery line,is the motor motor armature winding enameled wire cut off length, automatic molding equipment.
技術參數(shù)/Technicai Parameters
電源電壓Supply voltage | AC220V±10% 50Hz |
氣源壓力Air pressure |
0.5~0.7 MPa |
總功率Total power |
3kw |
剝漆長度Stripped length |
0~50mm |
送線長度Feeding length |
150~400mm |
工位數(shù)Workstations |
2 |
適用線徑Wire range |
Φ1.0~Φ2.5mm |
