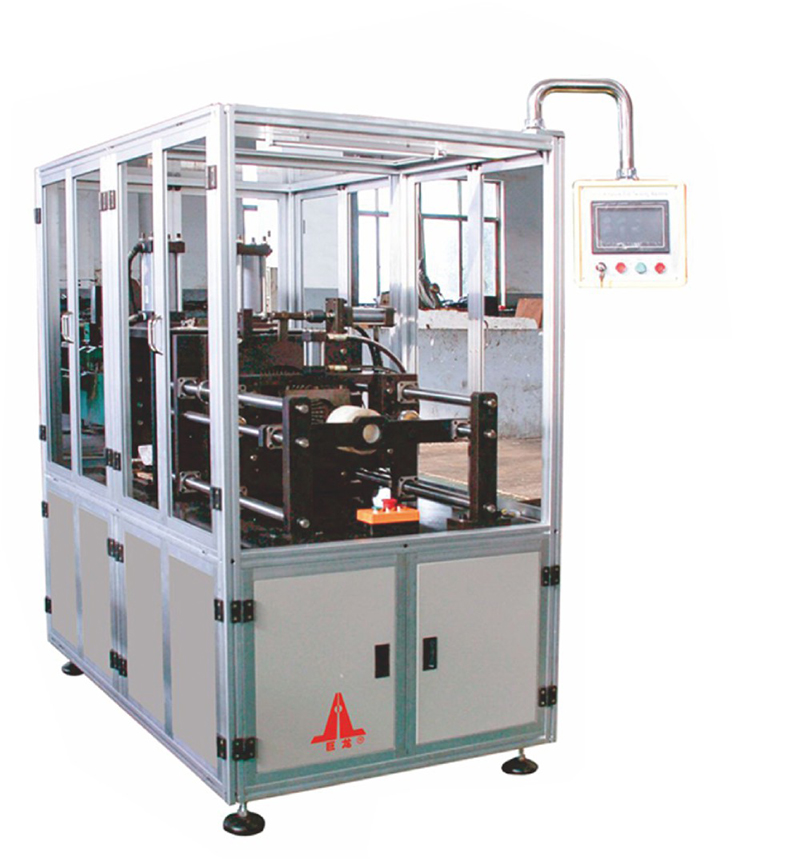

SN-1型 電樞扭頭機

上傳時間:2019-06-01




SN-1 Automatic Armature Winding End Twisting Machine (hydraulic control)



適用于汽車起動電機和類似電機、電樞繞組的自動扭頭。采用液壓齒條推動齒輪模具扭頭,有線頭根部自動推入定位爪,有效避免因扭頭導致槽口變形產生繞組損傷而短路。三菱PLC程控,分自動、手動操作,扭轉角度可調節。扭頭質量可靠。



Suitable for automotive starter motors and similar motors, armature windings automatically turned.The use of hydraulic racks to promote the gear mold head, head of the roots automatically push into the positioning claws, effectively avoid the resulting deformation caused by the notch wound winding damage and short circuit. Mitsubishi PLC program control, sub-automatic, manual operation, twist angle can be adjusted.high quality.


技術參數/Technicai Parameters


電源電壓Supply voltage AC220V±10% 50Hz

總功率Total power

0.5~0.7 MPa

液壓壓力Hydraulic Pressure

3kw

電樞直徑Armature diameter

180~400 mm

電樞長度Armature length

≤15 mm

槽數Slots

≤280mm

  按用戶產品定制Special specifications can be customized
