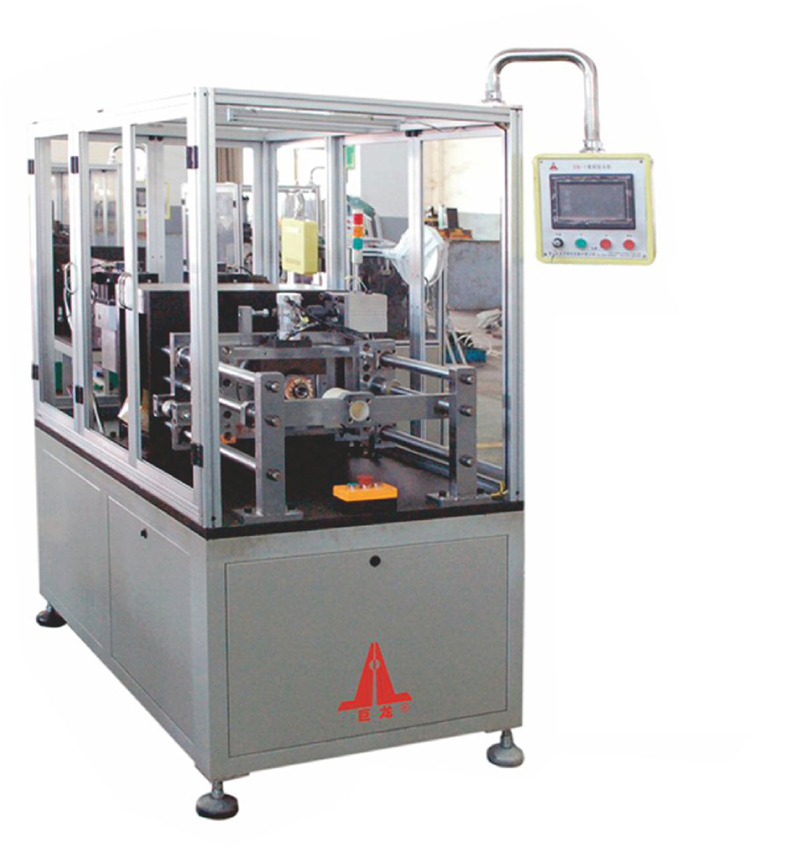

(雙伺服扭頭)SN-1S型 電樞扭頭機

上傳時間:2019-06-01



SN-1S Automatic Armature Winding Twisting Machine (servo control)



適用于汽車起動電機,雙圈或多圈電樞繞組的外層線扭頭并把扭好線頭壓入換向器槽內。采用三菱PLC程控,彩色觸摸屏設定參數,伺服電機驅動帶動齒輪轉動模具扭頭,定位精確,分自動、手動操作,扭頭角度可調,使用簡單方便。



Suitable for automotive starter motor, double or multi-turn armature winding of the outer wire turned and twisted thread into the commutator groove. Mitsubishi PLC program-controlled, color touch-screen set parameters, servo motor drive gear turn mold head,precise positioning, sub-automatic, manual operation, adjustable angle angle, easy to use.



技術參數/Technicai Parameters


電源電壓Supply voltage AC380V±10% 50Hz

氣源壓力Air pressure

0.5~0.7 MPa

總功率Total power

4kw

電樞直徑Armature diameter

Φ20~Φ120mm

電樞長度Armature length

50~500 mm

槽數Slots

12~60

  按用戶產品定制Special specifications can be customized
