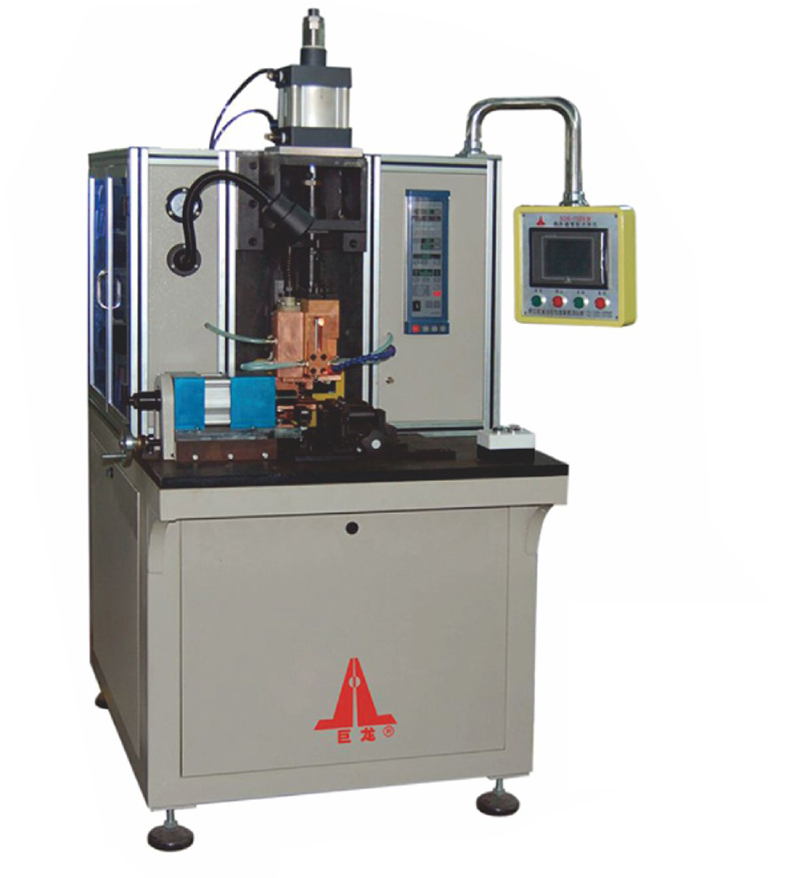

(米亞基電源)SDN-75ZN型 換向器自動點焊機
SDN-75ZN Commutator FullAutomatic Spot Welding Machine
適用于線徑較粗和截面較大的線頭與換向器點焊的專用設備。采用米亞基智能焊接控制器控制，氣缸加壓裝置、步進電機轉位分度、三菱PLC程控、觸摸屏顯示，水自循環冷卻。
Suitable for thicker and larger cross-section wire and commutator spot welding of special equipment. Miyachi smart welding controller control, cylinder pressure device, stepper motor indexing indexing, Mitsubishi PLC program-controlled, touch screen display,water self - cooling circulatory system
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7 MPa |
|
焊機功率Welder power |
75kw |
| 調節級數Adjusted series |
8檔 |
| 可焊線徑Wire diameter |
≤Φ4.0mm |
| 轉子外徑Rotor OD |
≤Φ130mm |
| 轉子軸徑Rotor shaft diameter |
≤Φ22mm |
| 換向器直徑Commutator diameter |
≤Φ80mm |
