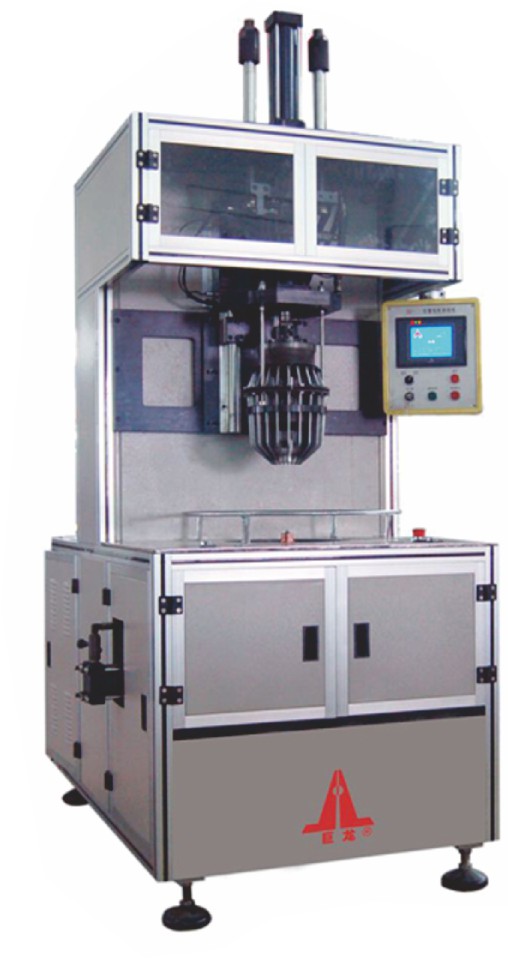

(雙圈圓線繞組專用)SK-21型 電樞自動嵌線機

SK-21 Armature Double Coils Inserting Machine

本機用適用于開口槽雙圈電樞繞組制成W形狀后的自動嵌線。采用液壓機械組合設計，三菱PLC程控、彩色觸摸屏操作，人工將W形成形繞組放入工裝后 .自動將成形后的W線圈嵌入轉子鐵芯和換向器槽內，無需扭頭,直接完成，生產效率高。

Suitable for dry opening slot double-pole armature winding made of W-shaped automatic wire.Hydraulic mechanical combination design,Mitsubishi PLC control, color touch screen operation, manual W-shaped winding into the tooling automatically after the formation of the W-coil embedded in the rotor core and commutator slot, without turning directly to complete , High production efficiency.

技術參數/Technicai Parameters
