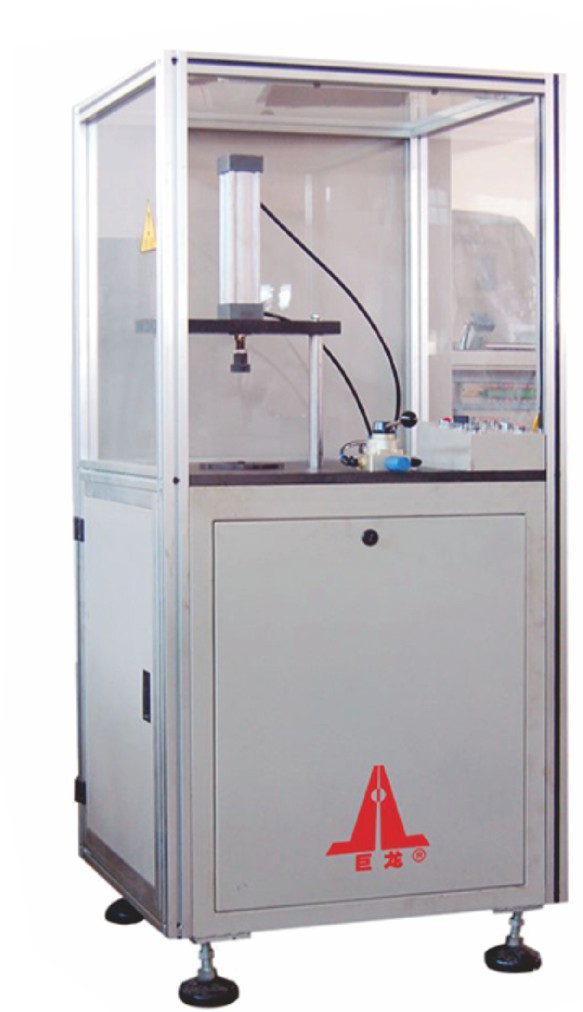

DZJ-21型 電樞整形機

上傳時間:2019-06-03


DZJ-21 Armature Double



本機是對雙圈電樞嵌線后對外層和引線整形壓入換向器點焊槽內的專用設備。采用液壓機械混合設計,能自動將21根引線整形并同時壓入換向器升高片的嵌線槽內,便于點焊,操作簡單,使用方便。



This machine is a pair of armature wire on the outer layer and lead wire shaping into the commutator spot welding groove of special equipment.The use of hydraulic mechanical mixing design, can automatically 21 lead wire shaping and press into the commutator rising piece of embedded trough, easy to spot welding, simple operation, easy to use.


技術參數/Technicai Parameters


電源電壓Supply voltage

380V±10% 50Hz

氣源壓力Air pressure

0.5~0.7 MPa

液壓壓力Hydraulic Pressure


0~7MPa


電樞槽數Slots

21

電樞直徑Armature diameter

50mm

總功率Total power

2kw

工作效率Working efficiency


20s
