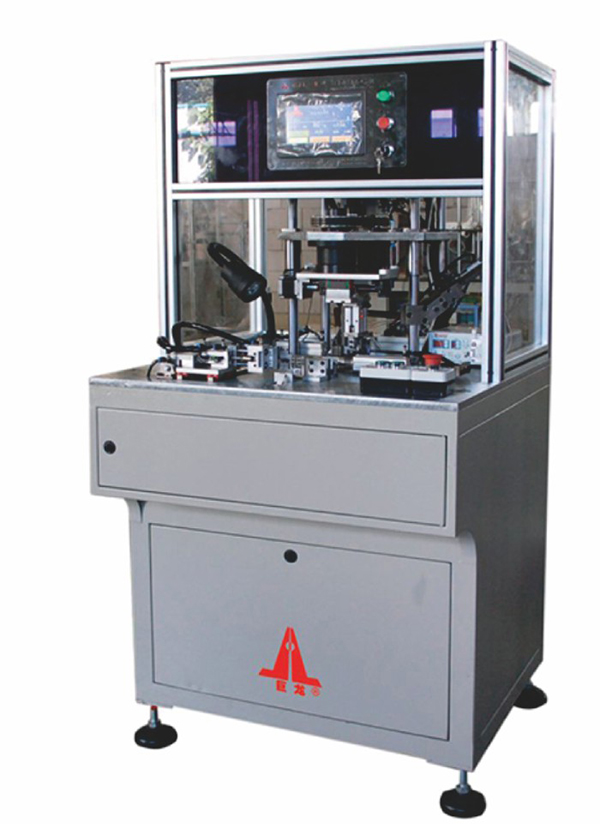

CJL-9型 自動磁場線圈包帶機

上傳時間:2019-06-03



CJL-9 Automatic Field Coil Strapping Machine



本機用于汽車起動電機定子扁線磁場線圈包扎絕緣帶的專用設備。采用三菱PLC程控,彩色觸摸屏控制參數,步進電機帶動旋轉,放入線圈定好角度參數后,自動轉位過彎包帶,并自動滴膠固定帶頭,線圈全方位包帶,操作簡單,使用方便。



Suitable for strapping field coil of auto starter.Mitsubishi PLC program control, color touch screen control parameters, stepper motor driven rotation, into the coil set the angle of the parameters,  special automatic turning to strap the belt, and automatically trickle glue to fix the belt end, all-round coil package, simple operation.


技術參數/Technicai Parameters


電源電壓Supply voltage AC220V±10% 50Hz

氣源壓力Air pressure

0.5~0.7MPa

總功率Total power

2kw

旋轉速度Rotating speed

0~400rpm

工件內窗尺寸Workpiece frame size

≥17mm

布帶寬度Belt width

11mm

    特殊規格可定制Special specifications can be customized
