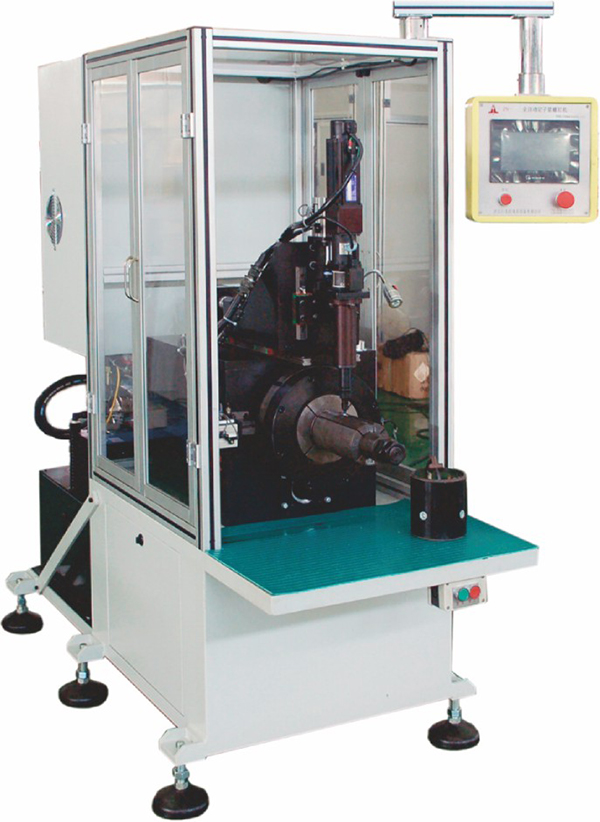

(伺服擰緊)ZN-1S型 磁極擰螺絲釘機
ZN-1S Servo Magnetic Pole Screw Tightening Machine
本機用于起動電機定子外殼與磁場線圈裝配后緊螺絲釘工序的專用設備。采用三菱PLC程控,觸摸屏顯示,伺服電機驅動擰螺絲頭旋轉,用電阻應變式拉力傳感器檢測擰緊力矩裝置,有壓力上下限報警功能,單頭擰頭,自動漲緊,自動分度,使用方便。
This machine is used to start the motor stator casing and magnetic field coil assembly process after the tightening screw special equipment.Mitsubishi PLC program-controlled, touch screen display, servo motor drive screw head screw rotation, with a strain gauge tension sensor to detect torque devices, pressure upper and lower limit alarm function, single screw, Convenience.
技術參數/Technicai Parameters
電源電壓Supply voltage | AC380V±10% 50Hz |
總功率Total power
|
3kw |
扭矩Torque
|
30/80/130N.m(可選) |
液壓壓力Hydraulic Pressure |
0~10MPa |
定子內徑Stator ID |
用戶定制 |
特殊規格可定制Special specifications can be customized |
