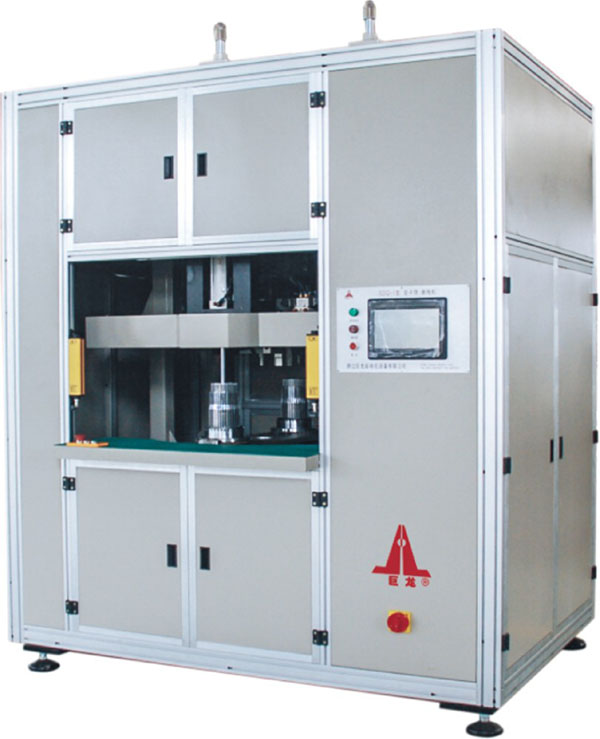

（波形繞組繞嵌一體機）SDQ-1型 雙工位波形繞嵌機

SDQ-1 Double Workstation Stator Wave Coil Winding and Inserting Machine

本機適用汽車發電機定子波形繞組的自動繞線、自動嵌線、自動打入槽蓋的一種專用設備。本機為伺服電機繞排線、氣動成形梅花狀，雙工位自動變位，伺服自動嵌線，自動打入槽蓋，一個工位在波繞推入嵌線模，另一個工位在嵌線并打入槽蓋，人工放人插好紙的定子，重復工作，PLC程控，彩色觸摸屏中文菜單設定及顯示，有點動單步/自動設定，自動化程度高，生產效率高。

Suitable for automatic winding of the stator winding of the generator of the automobile, automatic thread embedding, and a special device for automatically entering the slot cover.This machine is servo motor around the cable, pneumatic forming plum-like, automatic double-bit position, the servo automatically embedded line, automatically into the slot cover, a station in the wave-push into the embedded mode, another station PLC, color touch screen display, inching single step / automatic setting, high degree of automation, high production efficiency.

技術參數/Technicai Parameters
