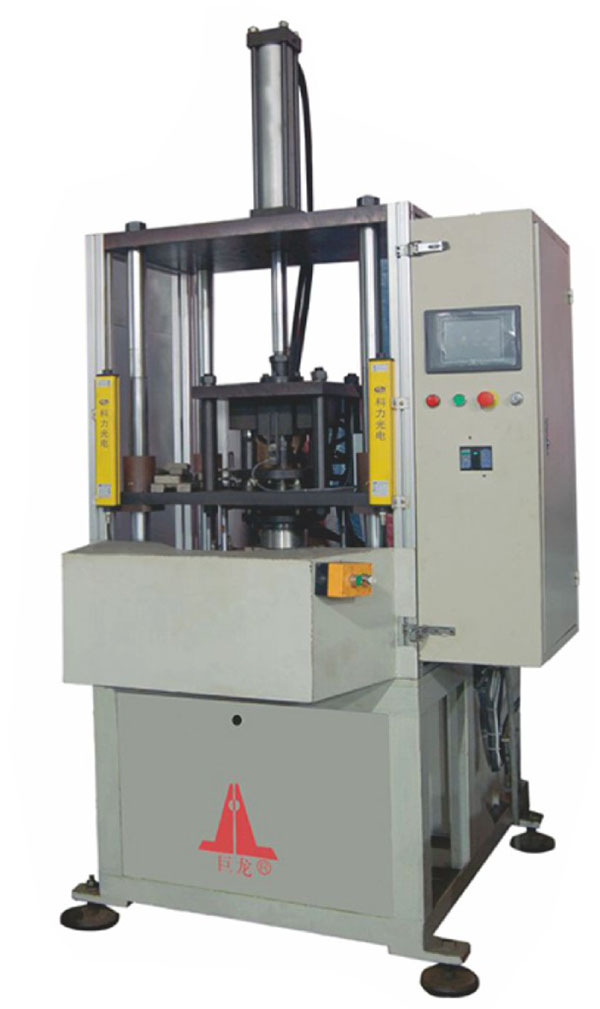

(擴/整形一體式)DX-4型 定子擴口整形機
DX-4 Model Stator Flaringand Forming Machine
本機適用于汽車發電機定子線圈端部上下,內外全部一次性整形。采用三菱PLC程控,觸摸屏顯示,液壓加壓整形,利用上頂缸壓下使滑塊向心收縮同步整形,彈簧復位,光電開關保護。
Suitable for automotive generators stator coil end of the upper and lower, both inside and outside all one-time plastic.Mitsubishi PLC program-controlled, touch screen display, hydraulic pressure shaping, the use of the top cylinder pressure to the slider to the heart contraction synchronous plastic, spring reset, photoelectric switch protection.
技術參數/Technicai Parameters
電源電壓Supply voltage | AC380V±10% 50Hz |
總功率Total power |
3kw |
液壓壓力Hydraulic Pressure |
0.5~0.7Mpa |
最大定子內徑Max.Stator ID |
≤Φ120 mm |
最小定子內徑Stator ID
|
≥Φ60 mm |
定子疊厚Core thickness
|
15~60mm |
特殊規格可定制Special specifications can be customized |
