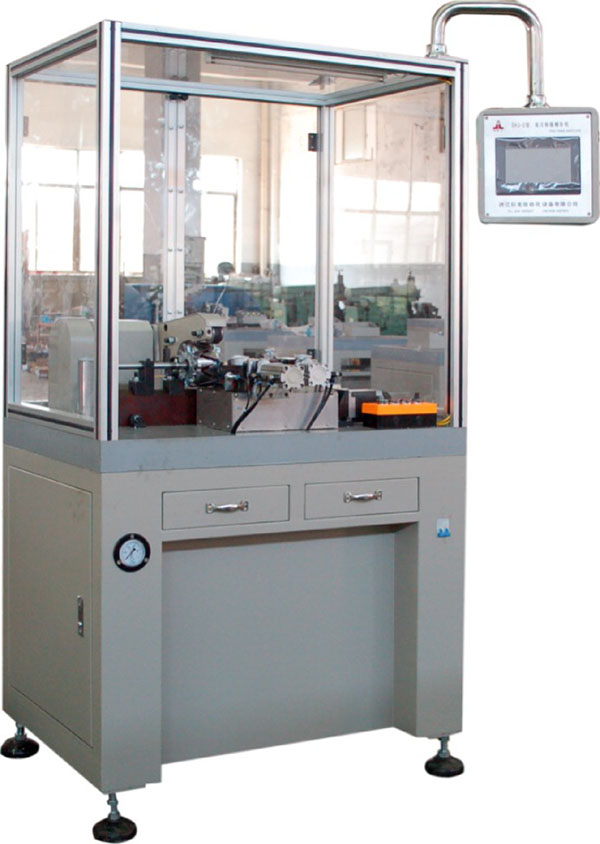

(伺服走刀)SKJ-2型 發電機集電環精車機
SKJ-2 Model Generator Collector Turning machine
本機適用于汽車發電機集電環的高精度車削。采用三菱PLC控制,粗車刀和精車刀分別車削,變頻調速器無級調速,采用硬質合金“V”形塊支承轉子軸同心度,操作方便。
Suitable for automobile generator sets the high-precision turning ring.Mitsubishi PLC control, rough turning and fine lathe turning, variable speed governor stepless speed regulation, the use of carbide "V" -shaped block support rotor shaft concentricity, damping cylinder control turning speed, easy to operate.
技術參數/Technicai Parameters
電源電壓Supply voltage | AC220V±10%50Hz |
氣源壓力Air pressure |
0.5~0.7 MPa |
總功率Total power |
2kw |
調頻范圍Frequency range | 0~50Hz |
車削粗糙度Turning roughness |
Ra0.4 |
切削線速度Cutting speed |
0~600m/min |
|
|
