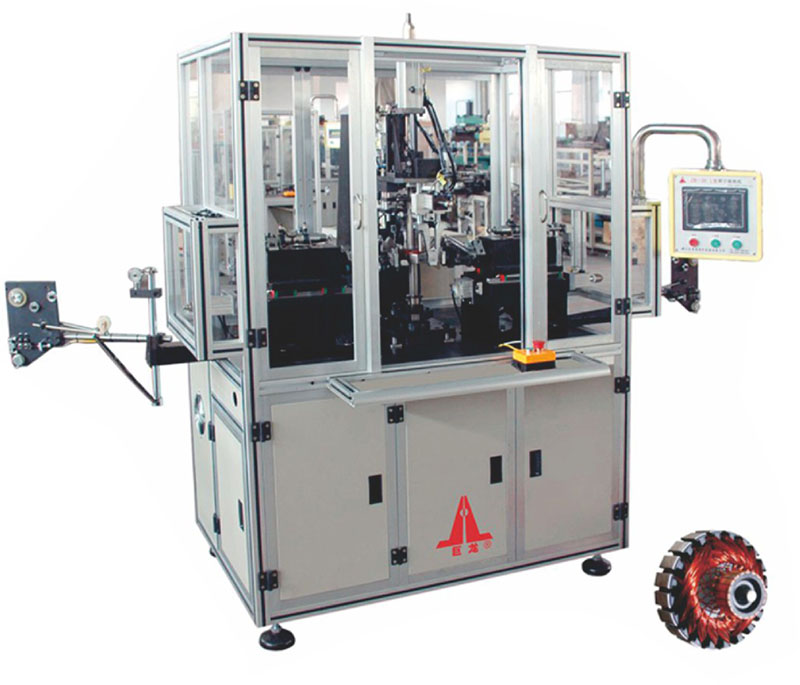

（扁電樞立式繞線）ZB-30L型 轉子自動繞線機

ZB-30L  Rotor Automatic Winding Machine

適用于偶數槽電機帶鉤換向器轉子的自動繞線。采用三菱三伺服系統，PLC程控，彩色觸摸屏顯示，立式結構繞線，人工放入工件，自動夾緊、定位、分度、繞線、掛鉤、自動拉斷，并配有剪刀自動剪線，所有流程連續工作，脫卸式更換工裝，漲力松緊可調，繞線均勻，人工上下料，生產效率高。

It is suitable for automatic winding of the rotor of a commutator with slotted motor.Automatic alignment, indexing, winding, hook, automatic pull off, and equipped with a scissors automatic trimming line, automatic clamping, automatic positioning, indexing, winding, hook, automatic pull off, and equipped with a scissors automatic trimming line, , All processes work continuously, the use of detachable replacement tooling, tension adjustable tension, winding evenly, manual loading and unloading, high production efficiency.

技術參數/Technicai Parameters
