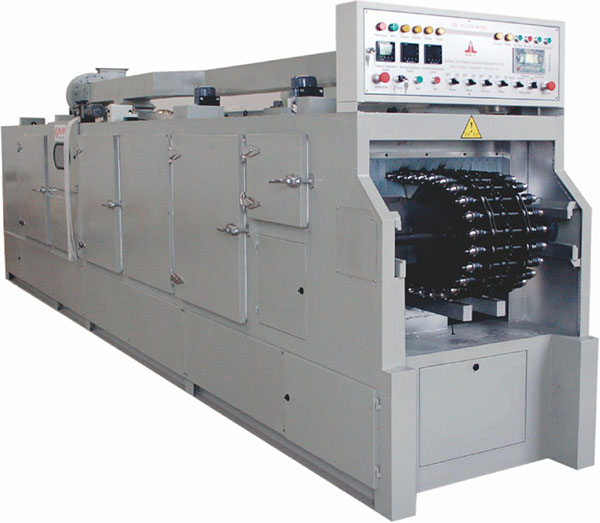

SZD系列 隧道式自動滴漆機

SZD Rotor Varnish Trickling Machine (Tunnel type)

適用于電動工具、串勵電機、家用電器電機，永磁微電機轉子的預烘滴漆烘干，經滴漆可以增加機械強度和絕緣性能。本機采用三菱PLC可編程控制，進口變頻器調速，氣動與機械相結合的結構，采用鏈輪旋轉運動，使鏈條產生步進運動，定位輸送，邊轉邊滾，移位準確，蠕動泵控制滴漆流量，滴漆均勻，三段溫度恒溫控制，生產效率高，操作簡單方便。

Apply to electric tools, series motors, household electrical appliances, permanent magnet micro-motor rotor pre-drying drip paint drying, the drip can increase the mechanical strength and insulation properties.The machine adopts Mitsubishi PLC programmable control, imported inverter speed control, pneumatic and mechanical combination of the structure, the use of sprocket rotating movement, the chain has stepped movement, positioning conveyor, edge turn edge roll, shift accuracy, peristaltic pump Droplets control flow, drop paint uniform, three temperature constant temperature control, high production efficiency, simple operation.

電源電壓Supply voltage：AC380V±10% 50Hz

氣源壓力Air Pressure: 0.5~0.7MPa 總功率Total power:35kw

備注：裝夾方式由用戶選定，可用鉆夾頭或夾套來固定轉子軸

Remark Clipping measures can be chose by clients, fixing totor axis by bore cliooeror cliping sleeve
