WRD-22型 轉盤式自動滴漆機

上傳時間:2019-06-04

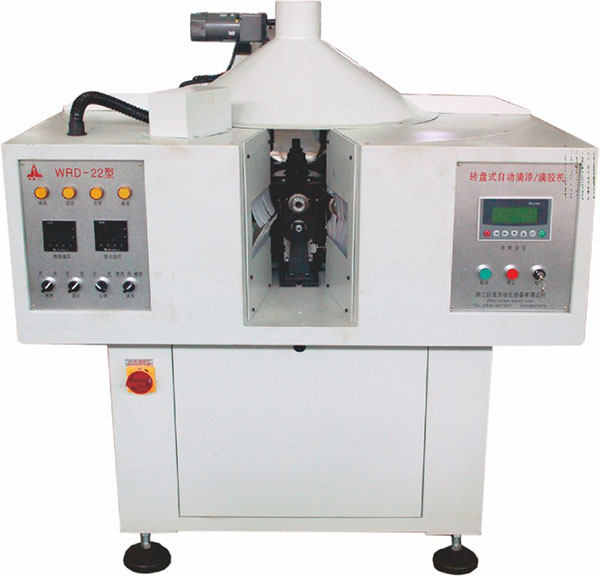

WRD-22 Turntable Varnish Trickling Machine



本機適用于微電機,串勵電機,摩托車汽車起動電機及各種電動工具電機的自動滴漆或滴膠和預固化處理的專用設備。本機采用進口PLC程控,液晶文本顯示器修改參數,平盤步進轉臺式結構,占地面積小,氣壓機械聯動,預熱和固化雙邊烘道,裝夾工件不轉,滴漆抬頭自轉,烘道溫度可控,用戶自備烘箱最終固化。



This machine is suitable for micro-motor, series motor, motorcycle motor starter motor and a variety of electric tools, automatic drop paint or Dijiao and pre-curing treatment of special equipment.This machine adopts imported PLC program control, LCD text display to modify parameters, flat plate stepping turntable structure, small footprint, pneumatic mechanical linkage, preheating and curing bilateral drying tunnel, clamping workpiece does not turn, Road temperature control, user-owned oven final curing.




技術參數/Technicai Parameters


電源電壓Supply voltage AC380±10% 50Hz

氣源壓力Air pressure

0.5~0.7MPa

總功率Total power

6kw

轉子外徑Rotor OD ≤Φ80mm
轉子軸徑Rotor shaft diameter

Φ3~Φ16mm

轉子長度Rotor length

≤150mm

溫度范圍Temperature range

≤200℃
