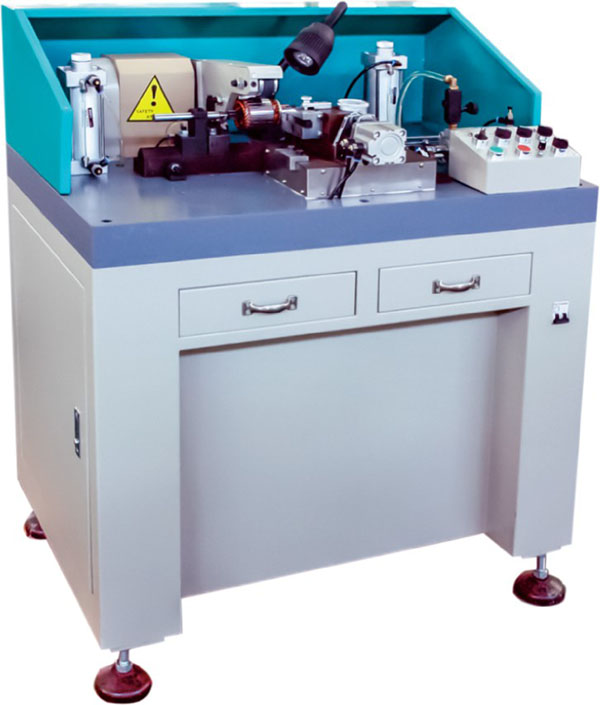

ZW-1型 單刀氣動外圓自動車削機
ZW-1 Pneumatic Single Cutter Automatic Rotor Lamination Turning Machine
本機用于電機轉子經(jīng)滴漆烘干后鐵芯外圓自動車削的專用設備。采用進口PLC程控,三菱變頻無級調速,液壓缸壓力調節(jié)走刀速度,V形塊支撐轉子軸,軸承檔有自動噴油裝置,百分表顯示進刀車削量,皮帶摩擦轉子外圓自動車削,所有動作一次完成,人工上下工件,操作簡單方便。
This machine is used for the special equipment of the iron core outer circle automatic turning after the motor rotor dries by dripping. It adopts imported PLC program control, Mitsubishi frequency conversion stepless speed regulation, hydraulic cylinder pressure regulating feed speed, V-shaped block supporting rotor shaft, bearing file has automatic oil injection device, dial indicator shows infeed amount, belt friction rotor outer circle automatic Turning, all actions once completed, manual up and down the workpiece, easy to operate.
技術參數(shù)/Technicai Parameters
電源電壓Supply voltage | AC220±10% 50Hz |
氣源壓力Air pressure |
0.5~0.7MPa |
總功率Total power |
1.5kw |
工件線速度Workpiece line speed | 0~400m/min |
車削轉子直徑Rotor Diameter |
Φ30~Φ60mm |
車削鐵芯長度Turning core length |
≤95mm |
轉子軸徑Rotor shaft diameter |
Φ3~Φ16mm |
