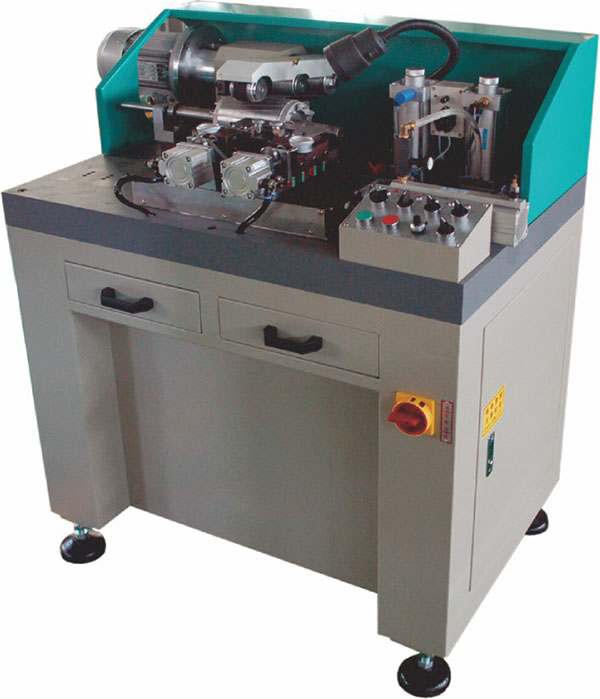

ZW-2型 雙刀氣動外圓自動車削機

上傳時間:2019-06-04



ZW-2 Pneumatic Two Cutters Automatic Rotor Lamination  Turning Machine



本機用于電機轉子經滴漆烘干后鐵芯外圓自動車削的專用設備。采用進口PLC程控,雙刀車削,三菱變頻無級調速,液壓缸壓力調節走刀速度,V形塊支撐轉子軸,軸承檔有自動噴油裝置,百分表顯示進刀車削量,皮帶摩擦轉子外圓自動車削,所有動作一次完成,人工上下工件,操作簡單方便。



This machine is used for the special equipment of the iron core outer circle automatic turning after the motor rotor dries by dripping.It adopts imported PLC program control, Mitsubishi frequency conversion stepless speed regulation, hydraulic cylinder pressure regulating feed speed, V-shaped block supporting rotor shaft, bearing file has automatic oil injection device, dial indicator shows infeed amount, belt friction rotor outer circle automatic Turning, all actions once completed, manual up and down the workpiece, easy to operate.



技術參數/Technicai Parameters


電源電壓Supply voltage AC220±10% 50Hz

氣源壓力Air pressure

0.5~0.7MPa

總功率Total power

1.5kw

工件線速度Workpiece line speed 0~400m/min
車削轉子直徑Rotor Diameter

Φ30~Φ60mm

車削鐵芯長度Turning core length

≤95mm

轉子軸徑Rotor shaft diameter

Φ3~Φ16mm
