ZW-S1型 伺服外圓自動車削機

上傳時間:2019-06-04

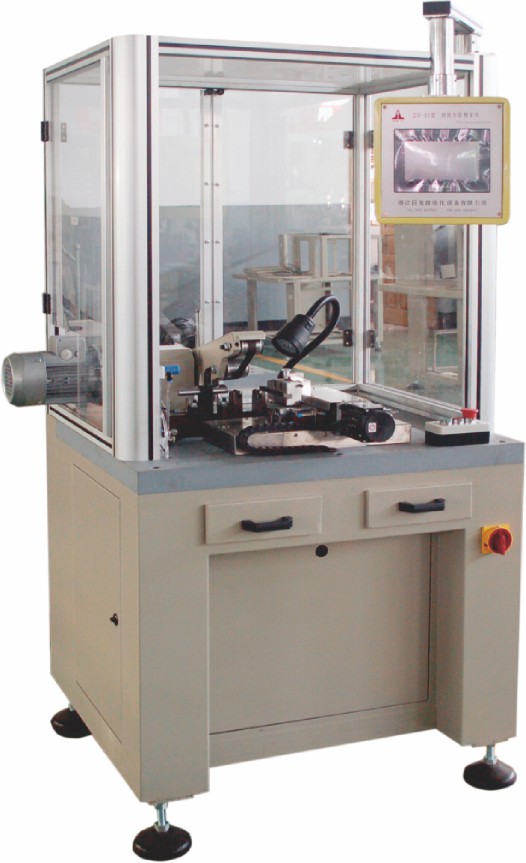

ZW-S1  Rotor Lamination Surface Turning Machine



本機是精密車削電機外圓外徑的專用設備。采用2個伺服電機,日本三菱控制器,中文彩色觸摸屏,車削外圓刀具,采用寶石精車刀,“V”型塊采用寶石或軸承,噴油裝置潤滑支架轉軸,旋轉皮帶壓迫轉子磨擦傳動,配合直線滾珠導軸和滾珠絲桿,進行x軸向精密走刀和y伺服系統自動進刀,一次裝上工件可實現一次或多次精車同次完成,是目前性能可靠,生產效率高的新穎車削機床。



The ZW-S1 Rotor Lamination Surface Turning Machine is a special equipment for the outer diameter of the precision turning motor. This machine adopts two servo motors, Japan Mitsubishi controller, Chinese color touch screen, rotor lamination surface turning cutter, special fine turning tool, hard alloy V block, fuel injection device to lubricate the bracket rotating shaft, rotating belt to fricative rotate the rotor, with linear ball guide shaft and ball screw for X-axis precision automatic feeding and Y-axis servo system autoamtic cutting, one time or more times turning can be completed. It is reliable, highly efficient new turning machine.


技術參數/Technicai Parameters


電源電壓Supply voltage AC380V±10%   50Hz

氣源壓力Air pressure

0.5~ 0.7Mpa

額定容量   Rated capacity

3000VA

伺服電機功率  Servomotor power 750W

工件軸徑Workpiece shaft OD

Φ3~Φ16mm

轉子外徑 Rotor OD

Φ20~Φ100mm

軸長度  Shaft length

60~250mm

切削線速度Cutting linear velocity

0~400m/min
