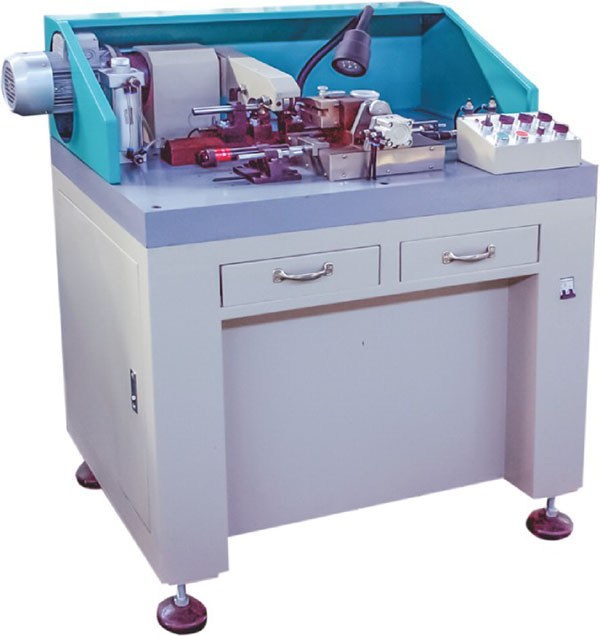

ZDJ-4型 單刀氣動換向器精車機

上傳時間:2019-06-04



ZDJ-4 Pneumatic  Single Cutter Commutator Turning Machine



適用于各類電機換向器高精度自動車削的專用設備。采用進口PLC程控,單刀車削,三菱變頻無級調速,硬質合金V形塊支撐轉子軸,軸承檔有自動噴油裝置,百分表顯示進刀車削量,進口阻尼氣缸控制走刀速度,車削速度均勻,配置高硬度寶石刀頭,皮帶摩擦轉子外圓自動車削,所有動作一次完成,人工上下工件,操作簡單方便。



Applicable to all types of motor commutator high-precision automatic turning of special equipment.It adopts imported PLC,high hardness gemstone head of the cutter, one workstation turning, Mitsubishi frequency stepless speed regulation, carbide V-block support rotor shaft, automatic oil injection device on bearing, turing feed dial indicator, imports damping cylinder control the cutting speed, stable turning speed, belt friction make rotor cylindrical automatic turning, all actions can be done in one time, artificial loading and unloading, easy operation.



技術參數/Technicai Parameters


電源電壓Supply voltage AC220V±10%   50Hz

氣源壓力Air pressure

0.5-0.7Mpa

總功率Total power

1.5KW

轉子外徑Rotor OD Φ20-Φ80mm
車削粗糙度Turning roughness

Ra0.4

換向器長度Commutator length

≤30mm

換向器直徑Commutator diameter

5-40mm

工件線速度Workpiece line speed

0~600m/min

轉子軸徑Rotor shaft diameter

3~20mm
