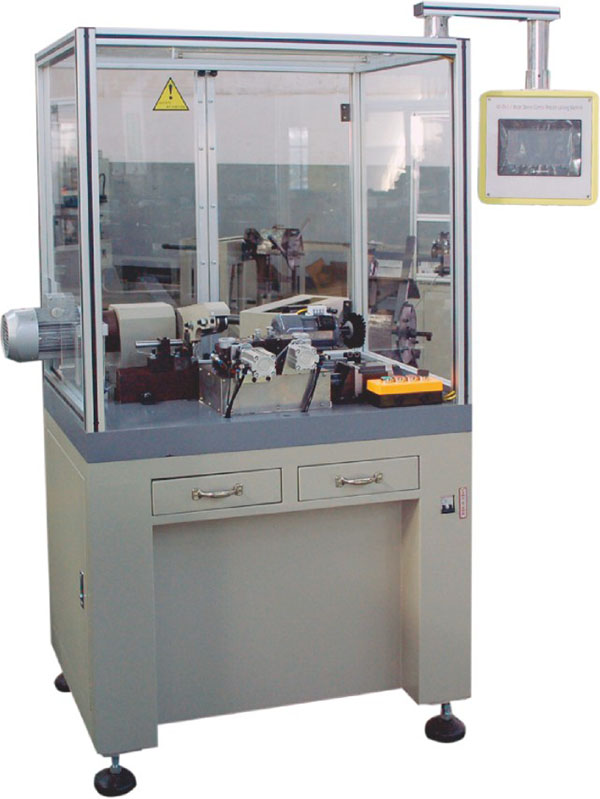

SKJ-2型 雙刀單伺服精車機

上傳時間:2019-06-04


SKJ-2 Servo Double Cutters Commutator Turning Machine



本機是精密車削電機換向器外徑的專用設備。采用進口PLC程控,觸摸屏修改參數,雙刀車削,粗車精車一次性完成,伺服電機控制走刀速度,車削均勻穩定,三菱變頻無級調速,硬質合金V形塊支撐轉子軸,軸承檔有自動噴油裝置,百分表顯示進刀車削量,配置高硬度寶石刀頭,皮帶摩擦轉子外圓自動車削,所有動作一次完成,人工上下工件,操作簡單方便。



This machine is a precision turning motor commutator diameter of the special equipment. Adopting imported PLC program and touch screen to modify parameters, double turning and roughing car finish once. Servo motor control feed speed, turning uniform and stable, Mitsubishi frequency stepless speed regulation, carbide V-block support rotor shaft, bearing Automatic gear injection device, dial indicator shows the amount of infeed, configuration of high hardness gemstone head, belt friction rotor cylindrical automatic turning, all actions once completed, the upper and lower workpiece, easy to operate.


技術參數/Technicai Parameters


電源電壓Supply voltage AC220±10% 50Hz

氣源壓力Air pressure

0.5~0.7MPa

總功率Total power

2kw

轉子外徑Rotor OD Φ20~Φ80mm

車削粗糙度Turning roughness

Ra0.4

換向器長度Commutator length

≤30mm

換向器直徑Commutator diameter

5~40mm

工件線速度Workpiece line speed

0~600m/min

轉子軸徑Rotor shaft diameter

3~20mm
