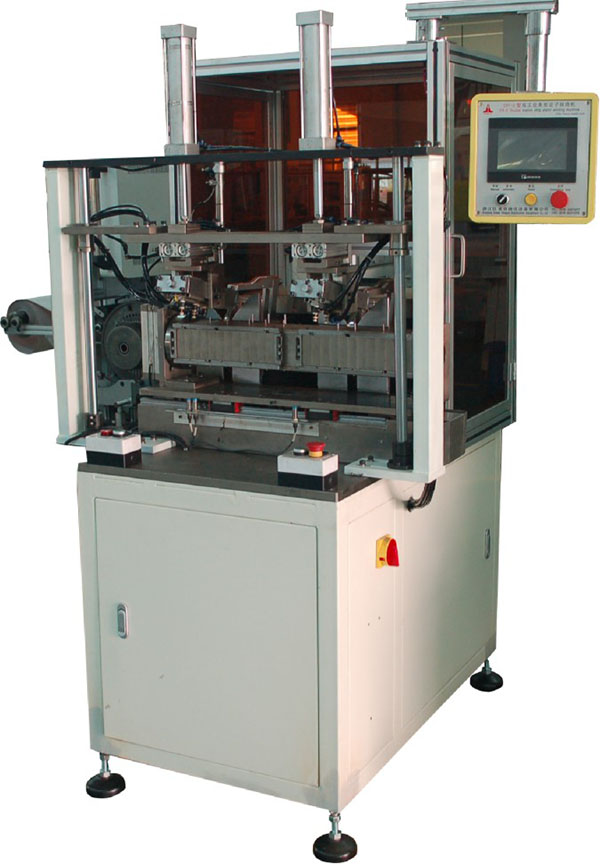

(2工位)DR-2型 條形定子自動排繞機

上傳時間:2019-06-04


DR-2 Strip Stator Automatic Arraying and Winding Machine



本機適用于條形定子自動排線的專用設備。工作后可自動單股或多股繞線,自動移位,自動剪線等動作,實現全自動繞線,排列整齊,繞線速度快,生產效率高。采用松下PLC和伺服系統,工業級人機界面,彩色觸摸屏操作。專業化界面設計,操作方便快捷。



This machine is suitable for automatic winding strip stator. It can wind single-strand or multi-strand, automatic shift, automatic trim and complete other actions to achieve fully automatic winding, neatly arranged, fast winding speed and high production efficiency. It adopts Panasonic PLC and servo system, industrial man-machine interface and color touch screen operation. Professional interface design, easy to operate.

技術參數/Technicai Parameters


電源電壓Supply voltage

AC220±10% 50Hz

氣源壓力Air pressure

0.5~0.7MPa

整機功率 Total power

2kw

疊厚范圍 Lamination thickness

10~80mm

適繞線徑 Suitable wire size

Φ0.2~Φ1.5

適繞根數 Number of wire

≤16

    特殊規格可定制Special specifications can be customized
