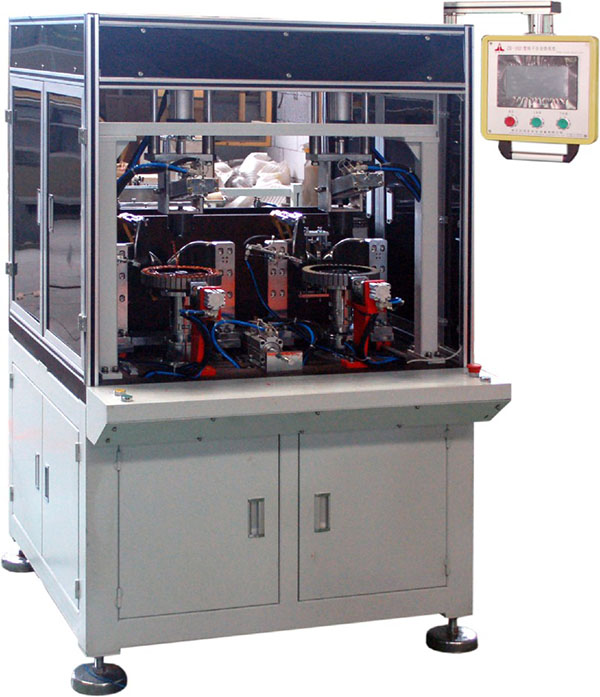

(雙工位自動減夾線)ESW-2S型 雙工位定子繞線機

上傳時間:2019-06-04



ESW-2 Model Staor Winding  Machine and Embedding Machine



適用于電動車定子的全自動繞線,雙工位設計,人工放入工作,自動定位,自動分度,自動繞嵌線,自動剪夾線,伺服電機及PLC程控,觸摸屏顯示修改參數。



Suitable for electric bicycle stator automatic winding, with two stations design. Manual putting workpiece,automatic positioning,automatic indexing,automatic winding, automatic embedding,automatic cutting wire, PLC, touching scereen changing parameters.




技術參數/Technicai Parameters


電源電壓Supply voltage

AC380V±10% 50Hz

氣源壓力Air pressure

0.5~0.7MPa

功率Total power

3kw

定子外徑Stator Outer Diameter Φ198/Φ266mm

定子疊厚Amature Depth

14-50mm

可繞線徑Wire Diameter

0.3-0.6mm

可繞線根數Number of wire

1-13
