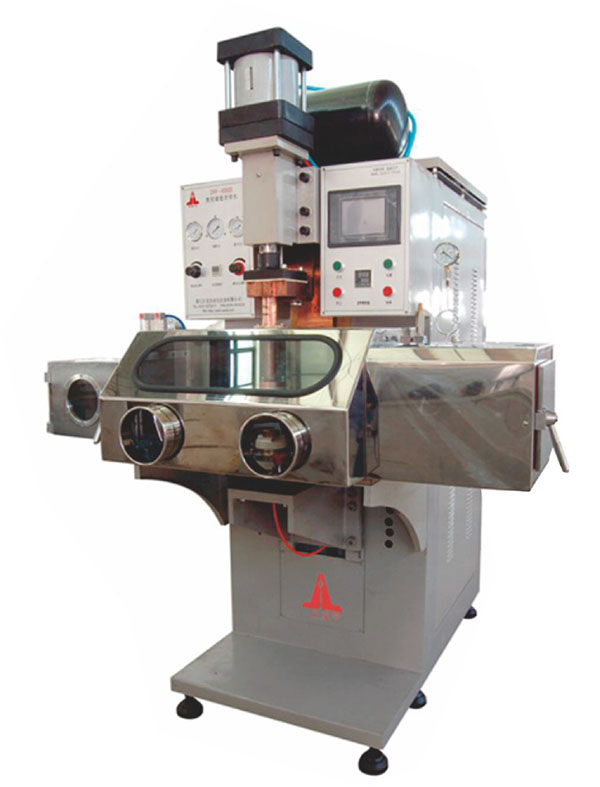

(真空加熱)DRF-6000S型 數(shù)控儲能脈沖封焊機
DRF-6000S CNC Energy Storage Pulse Seal Welding Machine
適用聲表滾波器、微波器件、晶休管、整流管、可控硅、傳感器等氣密性封焊。采用三菱PLC程控,觸摸屏顯示,高壓脈沖電容器放電,單桿式加壓,裝有抽真空,加熱恒溫,充氮密封裝置,工藝性能高。
Applicable to SAW roller, microwave devices, crystal break tube, rectifier, SCR, sensors and other airtight sealing welding.Using Mitsubishi PLC program-controlled, touch-screen display, high-voltage pulse capacitor discharge, single-rod pressurized, equipped with vacuum, heated thermostat, nitrogen sealing device, high process performance.
技術(shù)參數(shù)/Technicai Parameters
電源電壓Supply voltage |
AC220V±10% 50Hz |
氣源壓力Air pressure |
0.5~0.7MPa |
充電電壓Charging voltage |
0~1000V DC |
儲能能量Energy storage | 0~6000J、0~12000J |
電容容量Capacitance |
12000uF、24000uF |
電極壓力Electrode pressure |
3~15kN |
輸入電流Input Current |
20A |
