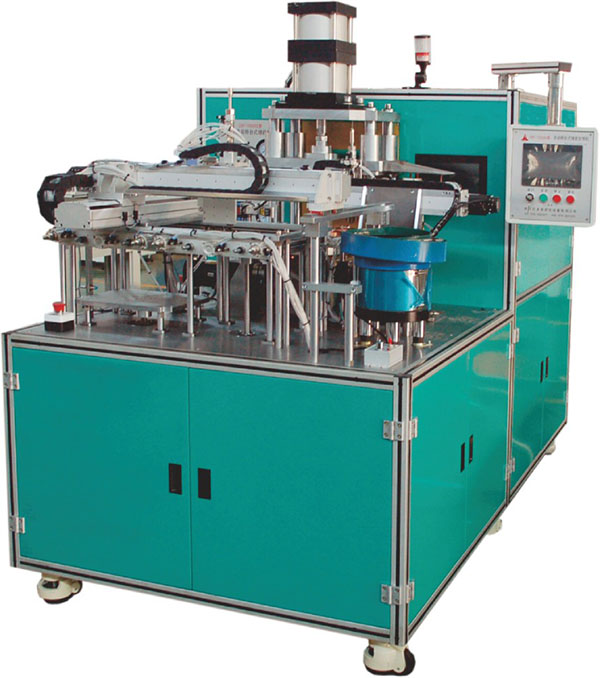

（全自動）DRF-7000S型 轉臺式全自動真空脈沖封焊機

DRF-7000S Turntable Automatic Pulse Welding Machine

本機主要應用于石英晶體、聲表濾波器、傳感器、晶體管抽真空充氮氣密性封焊，可以用來焊接有色金屬、電真空器件、電機熱保護器的抽真空充氮氣封焊。采用進口PLC程控，觸摸屏控制，六工位高精度轉盤式設計，自動上料、自動焊接、機械手自動取出合格和不合格分檢在不同工位上同步工作，極大提高了工作效率，同時又提高了操作安全性。采用米亞基焊接電流監(jiān)測儀，自動化程度高。

This machine is mainly used for vacuum seal welding of quartz crystal,SAW filter, sensor and transistor,and can be used for welding non-ferrous metal,electric vacuum device and motor thermal protector.It adopts imported PLC and touch screen control,turntable high-precision six-stations design, automatic feeding, automatic welding,automatic segregation of qualified and unqualified workpieces in different stations,greatly improving the work efficiency.Improved operational safety.Using Miyaki welding current monitor,high automation.

技術參數(shù)/Technicai Parameters




電源電壓Supply voltage	AC380V±10% 50Hz
氣源壓力Air pressure	0.5~0.7MPa
充電電壓Charging voltage	0~1000V DC
儲能能量Energy storage	7000J6000J
電容容量Capacitance	14000uF
輸入電流Input Current	20A
工位數(shù)Workstations	6
