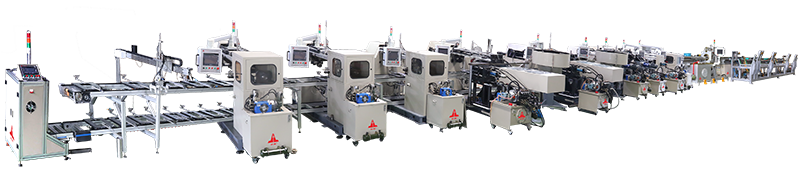

JT100/900型 機筒自動加工流水線

上傳時間:2019-05-31



采用進口PLC控制,彩色觸摸屏顯示,性能穩定,自動化程度高,自診斷報警功能,高智能識別技術,模塊化設計集成度高,定位準確。整體式液壓站作為動力源。高智能化識別功能,工序檢測精度靈敏,鋁合金機架外形美觀大方。 工件全自動上下料,產品生產效率高,配備專用工裝,不同產品調節方便。伺服控制傳動裝置,進口變頻調速,輸送速度穩定可調,操作更具人性化,蝸輪蝸桿減速,皮帶輸送力大。



Imported PLC, color touch screen display, stable performance, self-diagnostic alarm function. high intelligent recognition technology,modular design and high integration, accuracy positioning Integral hydraulic station as the power source.High automation and intelligent identification technology, accuracy and sensitive process detection, using a new arc surface aluminum shield, beautiful aluminum alloy frame.Automatic  loading and unloading workpiece, high production efficiency, with special tooling, fast

and convenient to change rotor. Servo control drive device,imported frequency control, stable and adjustable conveying speed, moreuser-friendly operation, worm worm deceleration, good belt conveying force.


工藝流程


切管下料機

平口倒角機1

擴口機

滾環槽機1

滾環槽機2

壓槽、壓軸承座、沖孔一體機1

壓槽、壓軸承座、沖孔一體機2

平口倒角機2

平口倒角機3

端面拋光機


電源電壓Supply voltage

AC380V±10% 50Hz

氣源壓力Air pressure

0.4~0.7MPa

管內徑Tube ID

Φ75~Φ100mm

管壁厚Tube  thickness

1.5mm

管長度Tube length

267~887mm

傳輸速度Transfer speed

12m/min

線體長度Line length

用戶定制Customized
